Description
SPECIFICATIONS:
PROCESSOR & MEMORY
- Intel Atom x7-E3950. 4x 1.6GHz 2MB L2 cache
- 8 GB DDR3L RAM
- 32GB eMMC Flash
- 256MB SSD
OPERATING SYSTEM & SOFTWARE
- Windows 10 IOT Enterprise
- Language Support for English, French, Spanish & more
- Adobe Reader
DISPLAY AND TOUCHSCREEN
- 5″ Active Viewing Area
- 720 x 1920 Landscape TFT-LCD
- Projected Capacitive Touch Interface
- Scratch resistant, chemically toughened touch screen
KEYBOARD
- QWERTY layout
- Separate Number Pad
- Adjustable Back-lit keys
- Dedicated Carlson Launch key
- Programmable Function keys
PORTS
- USB-A
- RS-232 (9-pin serial)
- Coaxial Power/Charge Port
- TNC for GAMA GNSS (optional)
- SMA for LR BlueTooth
BATTERY / POWER
- 49Watt hour Hot Swappable Battery (x2)
- Internal 28Wh Battery
- Charge Time: approx 1 hour per battery
- Run Time: approx 7 hours per battery*
PHYSICAL
- 2.5lbs (1.1kg) including battery
- Internal 28.12Wh battery

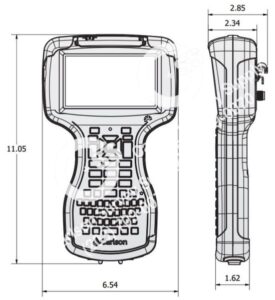

- Dimensions (approx): 11″ x 6.54″ x 2.34″
- Durable hardened plastic in a shear proof shock resistant design
- Chemical Resistant
- Shock absorbing bumpers
ENVIRONMENTAL
- IP65 waterproof and dustproof
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Shockproof: multiple drops from 1M onto concrete
CONNECTIVITY
- BlueTooth v2.0 + EDR wireless technology, approx 1000′ range
(less when paired w/ Class 1 device) - BlueTooth v5.1
- Wi-Fi certified 6 802.11a/b/g/n/ac
- 4G Cellular modem worldwide frequencies
- eSIM – dedicated to RTKMobile
CAMERA
- 13MP w/ Autofocus
- Full HD @ 60fps
CERTIFICATIONS
- FCC Class B
- Industry Canada
- EN60950 Safety
STANDARD ACCESSOIRES
- 49Watt Hour Battery (x2)
- 120VAC Battery Charger
- Battery Charging Tray
- Stylus
- Heavy Duty Padded Carry Case
OPTIONAL GAMA GNSS (internal)
- RTK class precision engine
- Multi-Frequency
- Multi-Constellation: (GPS + Glonass + Galileo + BeiDou +QZSS)
- Horizontal accuracy: 0.008M (8mm) + 1ppm
- Vertical accuracy: 0.011M (11mm) + 1 ppm
- Update Rate: 5Hz
- Convergance time < 10 seconds
- Initialization times: Cold start 24sec, reaquisition 2 sec.
[RTK Gama GNSS enngine is OTIONAL. Specified accuracies are subject to change with multipath, number of SV’s in view, Satellite geometry and ionospheric activity. Other factors may also affect results as is so with any GPS device.]
*Run time varies with settings, temperature and use.
OTHER ACCESSORIES: ( coming soon )
Pole Bracket
Battery
Tray
Charger
Stylus
GNSS antenna

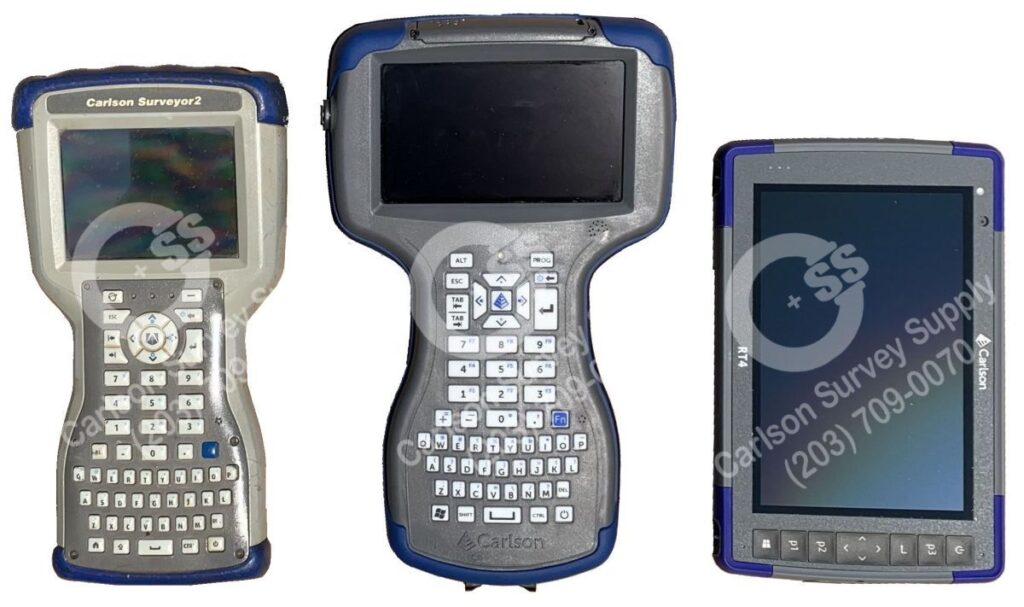

Size comparison of Surveyor2, Washington, RT4:

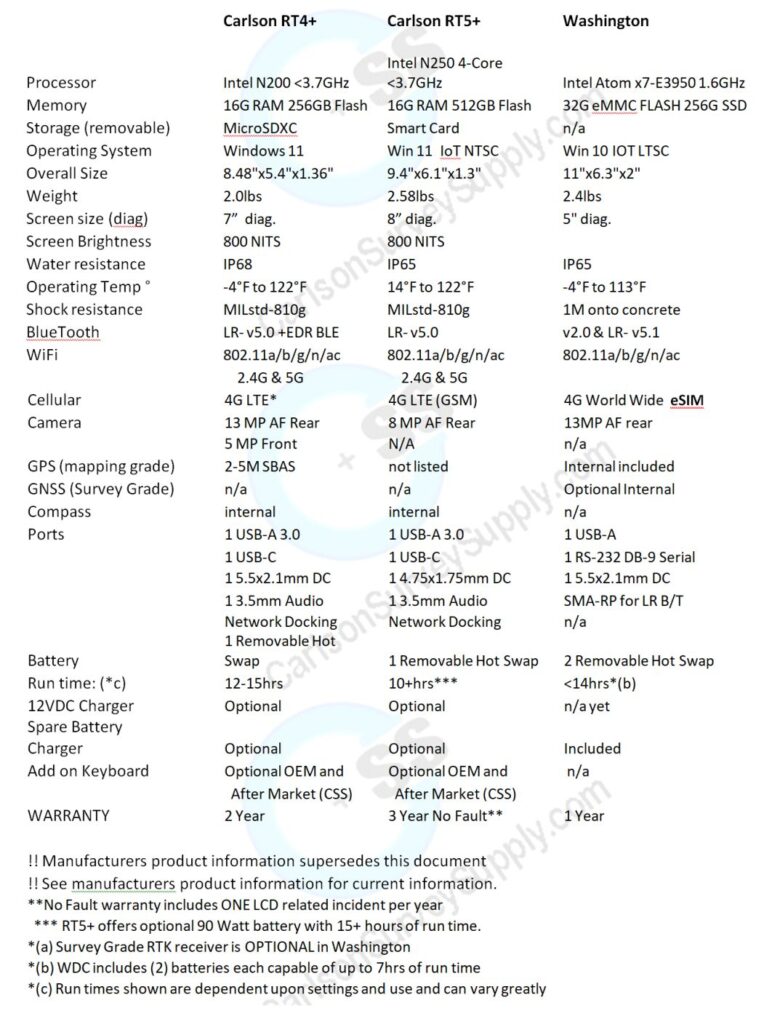

CSS Data Collector Comparison 8-2026
