Name: CSS Laser Distance Meter Offset Bracket
Brand: CSS
SKU: CSS-LDM-01
Price: 569.95 USD
Availability: InStock

NEW! Only from CSS

Laser Distance Meter Offset Bracket.

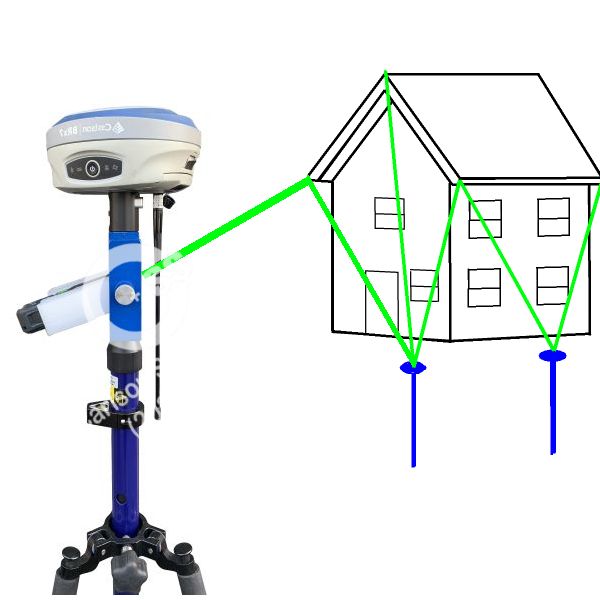

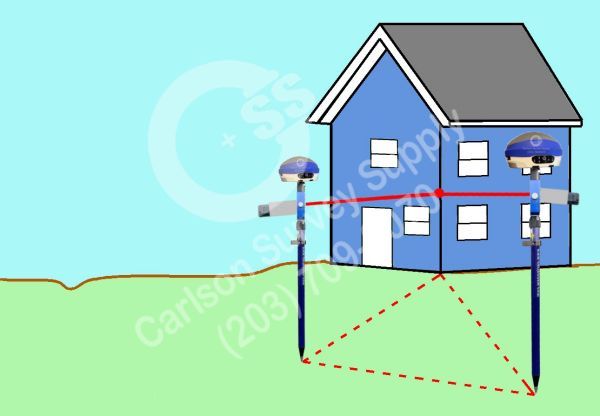

Mount our LDM-01 to your GPS Pole beneath your receiver and measure to remote locations with the Laser Distance Meter. Use SurvPC to calculate the point location by intersection or do it in your office.

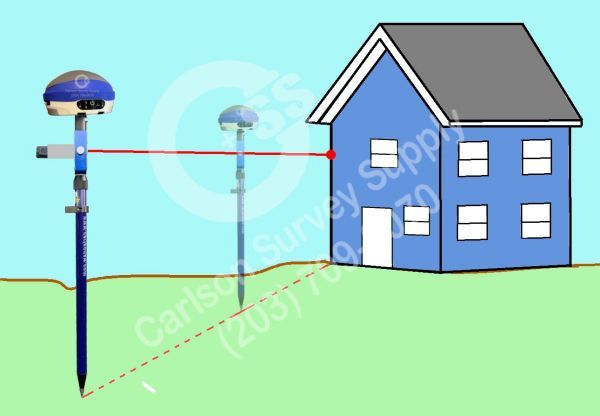

Our exclusive bracket positions the Distance Meter so that the measuring location is the Center of the pole and allows you to tilt and rotate for accurate results.

Measure Building corners, roof peaks and overhangs, poles, trees and other features remotely.

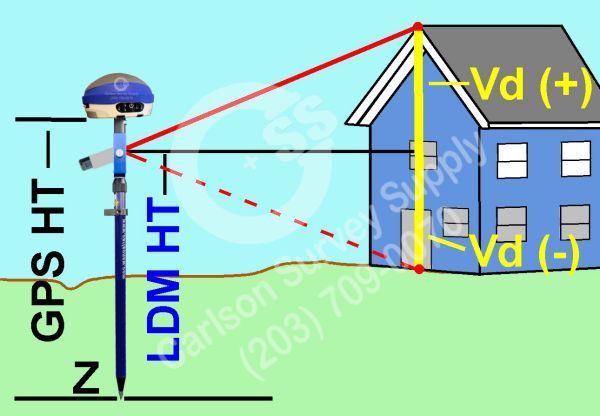

Switch function on the Laser Distance Meter and calculate remote height of key features.

Small and light enough to take with you, no more walking back to the truck to get the total station!

Description

Specifications (with Bosch GLM165g)

Weight: 1.45lbs

HI: 0.37′ (0.113M)

HI with QR: 0.50′ (0.153M)

Range: 165′ (depending upon surface color, texture, reflectivity, and ability to see Laser DOT)

Accuracy:

Distance: +/- 1.5mm (+/- 1/16 inch)
Angle: 5′
Combined: +/- 5mm + GPS location error

Test results comparing LDM-01 to Reflectorless Total Station using a 30′ GPS baseline:

Point	N	E	Z	Desc
7	796676.3	962258.028	330.3681	ROOF CORNER Total Station	diff N	diff E

102	796676.33	962258.013	316.5085	ROOF CORNER B-R	-0.02846	0.01541
112	796676.27	962258.004	310.4649	ROOF CORNER B-R	0.03228	0.02408
107	796676.31	962258.007	315.2423	ROOF CORNER B-R	-0.00573	0.02135
108	796676.31	962258.031	309.8713	ROOF CORNER B-R	-0.01024	-0.00279
109	796676.28	962258.005	312.1268	ROOF CORNER B-R	0.02282	0.0228

Compute Building perimeter and location using GPS locations and Laser Distance Meter offset measurements. In many cases this will be faster and easier than setting control and setting up a total station.
