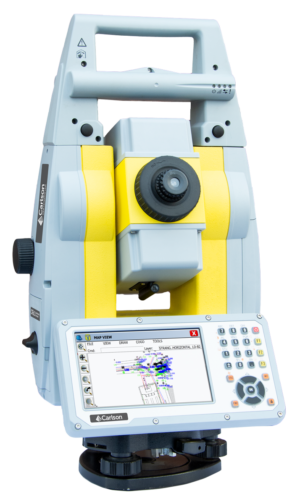

Carlson CRx Robotic Total Station

The NEW Carlson CRx series Robotic Total Stations include STReAM360 advanced positioning technology as well as X-motion hybrid drives & accXess  EDM performance. Carlson’s industry leading support together with these features provides a super reliable robotic total station.  The CRx series instruments are built to withstand the toughest conditions and designed and tested to be dust-proof and fully protected against water jets.

Click here for Product Brochure

Finance with payments as low as $ 485.00/month, for 60 months*

*Payment example shown does not include Sales Tax. First Payment and Document fee are required. Financing is subject to credit approval and may vary with credit score.

You can apply for Financing directly with our Financing Partner. The finance company will contact us when reviewed.

Apply for Financing here

Add a Data Collector and accessory package to your Carlson CRx Robot for a complete system:

Carlson RT4 Tablet

Carlson Survey Supply CRT450 Tablet

CRx1 MSRP: $ 30,819.00
CRx2 MSRP: $ 28,410.00
CRx5 MSRP: $ 25,083.00

To request a quote first select the model robot, data collector and accessories that you are interested in and then click the REQUEST A QUOTE button. You can add multiple items to the QUOTATION REQUEST CART. When you are ready click the VIEW QUOTATION REQUEST CART button and proceed to checkout. Fill in the form and click REQUEST A QUOTE.

No payment is required to complete the Quotation Request.

SKU: N/A Categories: ,
Carlson Software logo

Description

Carlson CRx Robotic Total Station
Angle Measurements
Accuracy 1” (0.3 mgon), 2” (0.6 mgon), 5” (1.5 mgon)
Method Absolute, continuous, diametrical
Compensation Quadruple axis
Display resolution 0.1” (0.1 mgon)
Telescope
Magnification 30x
Distance Measurements
Prism
Range/Accuracy/Time Single (fast): 2mm + 1.5ppm / 0.8 sec
Standard: 1mm + 1.5ppm / 2.4 sec
Continuous: 3mm + 1.5ppm / <0.15 sec
Range: up to 3500 m
Reflectorless
Range | Accuracy | Time | Precise capture accXess5/accXess10: 500m/1000m | 2 mm + 2 ppm* | typ. 2-6sec | 8×20 mm at 50 m
Motorization
Technology Hybrid Drives
Scout
Range 300m at round prism
TRack
Range 800 m at round prism
Max speed 90 km / h at 100 m
AIM
Range 1000 m at round prism
Hz/V accuracy 1”
Technique Image processing
NavLight™
Range 5 m at 150 m
Accuracy 5 cm at 100 m
Interface
Keyboard One full alphanumeric; 25 keys;
illuminated (2nd Display is optional)
Display 5″ WVGA 800 x 480 color and touch
with LED backlight
Data recording 2 GB internal memory; removable
SD card and USB stick
Ports Serial; USB; internal Bluetooth;
long- range Bluetooth handle and
external power
Operating system Microsoft Windows EC 7
Plummet
Type Laser point, adjustable brightness
Accuracy 1.5 mm at 1.5 m instrument height
Physical Specifications
Weight 5.0 – 5.3 kg
(w/o battery and tribrach)
Operating /
storage temperature		 –20°C to 50°C / -40°C to +70°C
Protection class IP55 dust and waterproof rating
Humidity 95%, non-condensing
Power Supply
Internal battery Removable Li-Ion 4.4 Ah / 7.4 V
Operating time Up to 8h**

* > 500 m: 4 mm + 2 ppm; ** Single measurement every 30 second at 25° C. Battery time may be shorter depending on conditions.
Distance meter (reflector mode): Laser class 1 in accordance with IEC 60825-1 resp. EN 60825-1; Laser plummet: Laser class 2 in accordance with IEC 60825-1 resp. EN 60825-1; Distance meter (reflectorless mode): Laser class 3R in accordance with IEC 60825-1 resp. EN 60825-1.

Robotic accessories link

Click here for Robotic Accessories

Additional information

Weight N/A
Carlson CRx Robotic Total Station

CRx1, CRx2, CRx5
