Sale!

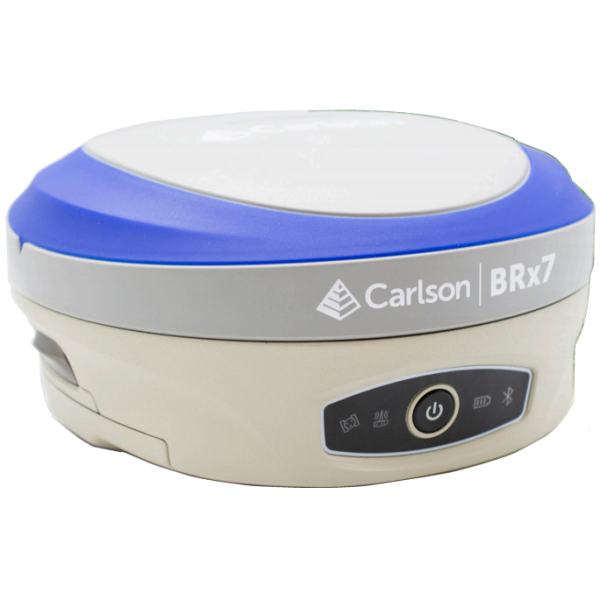

Carlson BRx7 Base-Rover RTK systems bundled for productivity.

ON SALE NOW!

If you are ready to BUY NOW! CALL for a one-time Phone only quote that you cannot refuse!

203-709-0070

The BRx7 is getting a lot of attention due to it’s advanced Canopy performance! The Carlson BRx7 universal GNSS receivers are appearing in blog posts, articles, videos and testimonials showing the how the canopy performance and Tilted Pole Correction feature can reduce field time and make you money in the woods.
We have been waiting a long time for this new class of canopy performance GPS and Carlson is the first to bring it to the market. Other manufacturers are taking notice!

Stop Floating around the trees!

Feedback from users has been overwhelming!  We have tested the BRx7 in the woods from Maine to South Carolina and have out performed all other brands including systems costing over $50K!
The BRx7 has provided reliable, REPEATABLE Fix’d solutions in more than 80% of the canopy covered areas that we have tested it in.

When your field data matters, choose Carlson Software!
We offer bundles that include Carlson SurvPC Data Collection software. SurvPC is a robust, reliable and easy to use field software with intuitive menu structure and powerful features. Compatible with Windows 10/11 SurvPC can run on most Windows 10/11 tablets and P.C.’s. Our Packages include the accessories you need to get your work done.

Need another reason to buy your new BRx7 from CSS? Here are 4 more:
  1. Our Base-Rover kits include one of our EXCLUSIVE Flexible antenna couplers to help our customers prevent down time from a broken radio antenna.
  2. Our Base-Rover kits include one of our EXCLUSIVE 12+ Hour Base Battery to prevent our customers  from wasting time walking back to the Base to change batteries on long campaigns.
  3. Our Base-Rover kits include one of our EXCLUSIVE RADIO ANTENNA EXTENSIONS! when you try to screw the radio antenna bracket on you will know why!
  4. Performance Bundels! ONLY available from CSS our performance bundles are configured to help you be more productive in YOUR typical work environment.
Financing is available
SKU: N/A Categories: ,

Description

NEW PERFORMANCE BUNDLES!



CSS Hilly Terrain GPS bundle

HILLY TERRAIN Bundle

Work over hills and around other obstructions with our Hilly Terrain Bundle. Radio wave propagation does not peform well in hilly terrain which can make RTK operation between hills and valleys impossible. Our Hilly Terrain bundle offers two options to overcome this problem:

  • Cellular Communication
  • Radio Repeater

Cellular Communication is the best option if you have cell service in the area you are working. If cell service is poor, or unknown, then our Radio Repeater will help you get the work done.

CSS Long Range GPS Bundle

LONGE RANGE Bundle

Work up to 20 Miles* from the Base without moving it with our Longe Range Bundle. TIME IS MONEY and leap-frogging your Base to cover long distances takes a lot of time. Our Long Range bundle un-locks the limited radio range (approx 1.5 mile Rad.) to up to 20 Miles with two options:

  • Cellular Communication
  • High Power UHF Radio

Cellular Communication is the best option if you have cell service in the area you are working. If cell service is poor, or unknown, then our High Power UHF Radio will help you get the work done.

* Performance and productivity are inversely to Base-Rover distance and directly related to Precision/Accuracy.

BRx7 SPECIFICATIONS

BRx7 GNSS Receiver:
  • Multi-Frequency, Multi-Constellation GNSS
  • Positioning Modes: RTK, L-band, DGNSS, SBAS, Autonomous
  • Channels: 800+
  • RTK Formats: RTCM 2.1, RTCM 2.3, RTCM3.0, RTCM3.1, RTCM3.2 including MSM
  • L-Band Formats: Atlas H100, Atlas H30, Atlas H10
  • Update Rate/ Recording Interval: Selectable from 1, 2, 4, 5, 10 Hz (20 Hz available)
Performance
  • Horizontal /  Vertical RTK (RMS): 8 mm + 1 ppm /  15 mm + 1 ppm
  • Static Performance (long occupation): 5 mm + 0.1 ppm /  3.5 mm + 0.4 ppm
  • SBAS (WAAS): 1 0.3 m 0.6 m Autonomous, no SA:1 1.2 m 2.4 m
Satellite Tracking
  • GPS: L1CA, L1P, L2P, L2C, L5
  • GLONASS: G1, G2, G3, P1, P2
  • BeiDou: B1i, B2i, B3i, B10c, B2A, B2B
  • QZSS: L1CA, L2C, L5, 1C, LEX
  • Galileo: E1BC, E5a, E5b, E6BC, ALTBOC
  • SBAS: MSAS, WAAS, EGNOS, GAGAN
  • IRNSS: L5
  • Atlas
Communication Connectors I/O:
  • 5-pin Lemo, external power & and radio 7-pin Lemo, USB OTG connection & serial port
  • TNC antenna connector for internal radio
  • WebUI: Software upgrade, status, settings and download via browser on Wi-Fi

Outputs: RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2 including MSM

Radio Frequency Range (Dual Band):

  • 410 – 470 MHz Channel Spacing: 12.5 KHz / 25 KHz
    • 902.4 – 928MHz  LICENSE FREE BAND!

Emitting Power: 0.5 / 1 W Operating Range: 1-2 Miles (depending on terrain and interference)

Wireless Module Wi-Fi: 802.11 b/g, Integrated module with antenna.

Bluetooth: 2.1 + EDR, / 4.0 LE

Cellular PLS8-X (North America):
  • LTE FDD, LTE TDD, UMTS, GSM
  • User accessible SIM card slot
Power:
  • Run Time: Base approximately 5-7hrs*
  • Run Time: Rover approximately 6-8hrs *
  • Hot-swappable 7.2 V lithium (2 per kit) Battery
  • External power input: 9 to 28 VDC .
  • Charge Time: Typically 7 hours
  • * Run time varies with configuration and conditions
Memory:
  • Internal 8 GB, accessible through USB and Wi-Fi.
  • Memory card: Micro SD card slot, up to 32 GB.
Environmental:
  • Operating Temperature: -30°C to 65°C (-22°F to 149°F)
  • Storage Temperature: -40°C to 80°C (-40°F to 176°F)
  • Waterproof/Dustproof: IP67
  • Shock Resistance: MIL-STD-810G, method 516.6: 2 m pole drop on concrete floor 1 m free drop on hardwood floor
  • Vibration: MIL-STD-810G, method 514.6E-I
  • Humidity: Up to 100%
  • Inflammability: UL recognized, 94HB Flame Class Rating (3)
  • Chemical Resistance: Cleaning agents, soapy water, industrial alcohol, water vapor, solar radiation (UV)

Mechanical Size: 156mm x 76mm (6.14″ x 2.99″)

Weight: <1.3 kgs (<2.87 lbs)

Mounting: 5/8”x11 female

GNSS Antenna Phase Center Offset: GPS L1 and L2 offset below 2.5 mm





GPS accessories diagram

Click here for GPS accessories

Additional information

Weight N/A
Carlson BRx7 Base-Rover

BRx7 NO data collector, BRx7 w-RT4 basic, Hilly Terrain Bundle, Longe Range Bundle
