$8,995.00

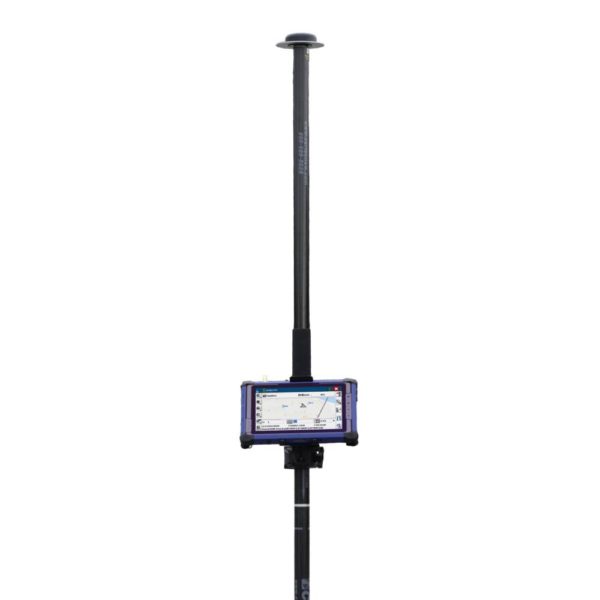

Introducing the NEW Carlson RTk5 GNSS Rover

Lightweight and powerful the new RTk5 GNSS Rover offers performance that exceeds more expensive systems. This complete Network Rover is designed for GPS Network operation but can be run as Base-Rover when using Carlson Listen-Listen service.

Package includes: RTk5 8″ Windows Tablet running Carlson SurvPC V7 [GPS only module], Multi Constellation-Multi Frequency Gama GNSS Engine, Precision RTK Antenna, Helix mini RTK antenna, Pole, Pole bracket, cable, Battery, charger and case.

Click here for Product Brochure

2 in stock (can be backordered)

SKU: RTk5-Complete-GPS-only Category:

Description

SPECIFICATIONS

Multi-Frequency
 Multi-Constellation (GPS + GLONASS + Galileo + BeiDou + QZSS)
 RTK1,2
 Position accuracy: RTK 0.008 m + 1 ppm
 Update rate up to 5 Hz
 Convergence time: < 10 sec
 Initialization Time
 Cold starts 24 s
 Reacquisition 2 s

PROCESSOR
 Quad-core Intel® Pentium Silver processor

OPERATING SYSTEM
 Microsoft® Windows 10 IoT Enterprise
 Multiple languages supported (English, French, Spanish, German, Portuguese)

DATA COLLECTION SOFTWARE

Carlson SurvPC V7 [GPS only module]

MEMORY AND DATA STORAGE
 8 GB RAM
 256 GB flash storage
 User-accessible smart card reader

GRAPHICS
 Intel® HD Graphics

DISPLAY
 Active viewing area: 8” (203 mm)
 Resolution: WXGA (1280 x 800)
 High-visibility backlit LCD for sunlight viewability
 Portrait or landscape orientation with automatic screen rotation

TOUCH SCREEN
 Projected capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions

PHYSICAL KEYS
 LED backlight adjustment keys
 Windows/home key
 Power button
 2 trigger buttons
 4 programmable buttons

PORTS
 USB 3.0 x 1
 3.5 mm audio jack
• Charging port
 USB Type-C power input jack
 Built-in speaker

CAMERA

  • 8 MP Camera (on Back of Tablet) with Auto Focus, White Balance, Gain Control,
    and Exposure Control
  • Camera control APP with programmable shutter button

BATTERY
Removable Li-Ion battery, 5400mAh (60 Watt)
 Operates 10+ hours on one charge
 Hot-swappable, easily changeable in field
 Optimized for strong performance in cold temperatures
 Excellent lifecycle performance
[Optional 8000mAh (90 Watt) battery for 15+ hours of operation]

PHYSICAL
 Size: 6.1 x 9.4 x 1.3 in (155 x 238 x 33 mm)
 Tablet Weight: 2.58 lbs (1.17 kg)
 Complete setup on pole: ONLY 6 lbs (2.72 kg)
Durable, shock-resistant design
 Easy-to-grip, impact-absorbing, overmolded bumpers
 Lightweight and ergonomic design

WIRELESS CONNECTIVITY
Long Range Bluetooth® (tested to 1,500’/450 m)
 Wi-Fi· 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz
 4G LTE

OTHER FEATURES
 TPM (Trusted Platform Module) v2.0

CERTIFICATIONS AND STANDARDS
 IEC 62368-1
 FCC Class B
 CE Marking (applicable EMC, R&TTE, and LVD directives)
 RoHS Compliant
 Industry Canada
 HERO (Hazard of Electromagnetic Radiation to Ordnance) certified

FIELD-TESTED RUGGED
 IP65 for dust and water resistance
 Operating Temperature: 14 F to 122 F (10° C to 50° C)
 Storage temperature: -4 F to 140 F (-20° C to 60° C)
 MIL-STD-810G for shock and vibration protection

WARRANTY
 2-year warranty
 Service plans available

STANDARD ACCESSORIES (click for replacement items)
• Antennas: Survey grade (RTk5), Helix/GIS (RTk5), and LR Bluetooth
• Custom survey pole (RTk5)
Custom cradle with pole mount & 1” ram arm
Standard removable battery (60 Watt)
 AC wall charger
 Quick Start Guide
 Hand strap

OPTIONAL ACCESSORIES

RT5-Accessories-diagram-1

Additional information

Weight 40 lbs
